OdeRobot Class Reference

#include <oderobot.h>

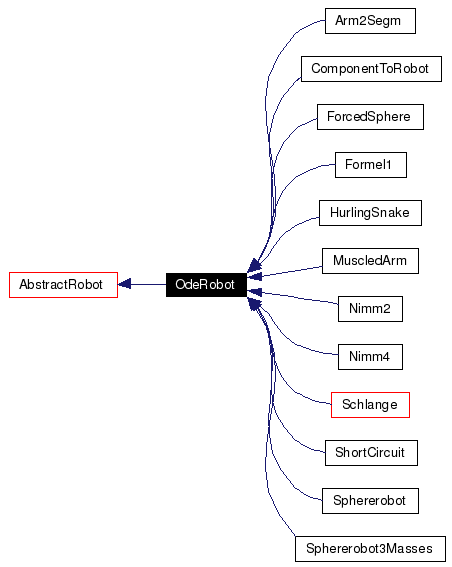

Inheritance diagram for OdeRobot:

Inheritance graph
[legend]

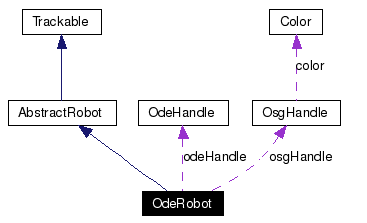

Collaboration diagram for OdeRobot:

Collaboration graph
[legend]
List of all members.

Detailed Description

Abstract class for ODE robots.
Examples:

main.cpp.

Definition at line 127 of file oderobot.h.

Public Member Functions

 OdeRobot (const OdeHandle &odeHandle, const OsgHandle &osgHandle, const char *name="OdeRobot")
 Constructor.
virtual ~OdeRobot ()
virtual void update ()=0
 update the OSG notes here
virtual void place (const Pos &pos)
 sets the vehicle to position pos pos desired position of the robot
virtual void place (const osg::Matrix &pose)=0
 sets the pose of the vehicle
virtual bool collisionCallback (void *data, dGeomID o1, dGeomID o2)=0
 checks for internal collisions and treats them.
virtual void doInternalStuff (const GlobalData &globalData)=0
 this function is called in each timestep.
virtual void setColor (const Color &col)
 sets color of the robot
virtual Position getPosition () const
 returns position of the object
virtual Position getSpeed () const
 returns linear speed vector of the object
virtual matrix::Matrix getOrientation () const
 returns the orientation of the object
virtual PrimitivegetMainPrimitive () const =0
 overload this in the robot implementation.

Static Protected Member Functions

static bool isGeomInPrimitiveList (Primitive **ps, int len, dGeomID geom)
static bool isGeomInPrimitiveList (list< Primitive * > ps, dGeomID geom)
static matrix::Matrix odeRto3x3RotationMatrixT (const double R[12])
static matrix::Matrix odeRto3x3RotationMatrix (const double R[12])

Protected Attributes

OdeHandle odeHandle
OsgHandle osgHandle
dSpaceID parentspace

Friends

class OdeAgent


Constructor & Destructor Documentation

OdeRobot const OdeHandle odeHandle,
const OsgHandle osgHandle,
const char *  name = "OdeRobot"


Constructor.

Parameters:
odehandle structure with all global ODE variables

Definition at line 48 of file oderobot.cpp.

~OdeRobot  )  [virtual]


Definition at line 53 of file oderobot.cpp.


Member Function Documentation

virtual bool collisionCallback void *  data,
dGeomID  o1,
dGeomID  o2
[pure virtual]


checks for internal collisions and treats them.

In case of a treatment return true (collision will be ignored by other objects and the default routine) else false (collision is passed to other objects and (if not treated) to the default routine).

Implemented in ComponentToRobot, Arm2Segm, ForcedSphere, Formel1, HurlingSnake, MuscledArm, Nimm2, Nimm4, Schlange, ShortCircuit, Sphererobot, and Sphererobot3Masses.

virtual void doInternalStuff const GlobalData globalData  )  [pure virtual]


this function is called in each timestep.

It should perform robot-internal checks, like space-internal collision detection, sensor resets/update etc.

Parameters:
globalData structure that contains global data from the simulation environment

Implemented in ComponentToRobot, Arm2Segm, ForcedSphere, Formel1, HurlingSnake, MuscledArm, Nimm2, Nimm4, Schlange, ShortCircuit, Sphererobot, and Sphererobot3Masses.

virtual Primitive* getMainPrimitive  )  const [pure virtual]


overload this in the robot implementation.

If there is no object for some reason then return a null pointer

Returns:
main object of the robot (used for tracking)

Implemented in Arm2Segm, ForcedSphere, Formel1, HurlingSnake, MuscledArm, Nimm2, Nimm4, Schlange, ShortCircuit, Sphererobot, and Sphererobot3Masses.

matrix::Matrix getOrientation  )  const [virtual]


returns the orientation of the object

Returns:
3x3 rotation matrix

Implements Trackable.

Definition at line 92 of file oderobot.cpp.

Position getPosition  )  const [virtual]


returns position of the object

Returns:
vector of position (x,y,z)

Implements Trackable.

Definition at line 72 of file oderobot.cpp.

Position getSpeed  )  const [virtual]


returns linear speed vector of the object

Returns:
vector (vx,vy,vz)

Implements Trackable.

Definition at line 82 of file oderobot.cpp.

bool isGeomInPrimitiveList list< Primitive * >  ps,
dGeomID  geom
[static, protected]


Definition at line 110 of file oderobot.cpp.

bool isGeomInPrimitiveList Primitive **  ps,
int  len,
dGeomID  geom
[static, protected]


Definition at line 103 of file oderobot.cpp.

matrix::Matrix odeRto3x3RotationMatrix const double  R[12]  )  [static, protected]


Definition at line 131 of file oderobot.cpp.

matrix::Matrix odeRto3x3RotationMatrixT const double  R[12]  )  [static, protected]


Definition at line 117 of file oderobot.cpp.

virtual void place const osg::Matrix pose  )  [pure virtual]


sets the pose of the vehicle

Parameters:
pose desired 4x4 pose matrix

Implemented in Arm2Segm, ForcedSphere, Formel1, HurlingSnake, MuscledArm, Nimm2, Nimm4, Schlange, ShortCircuit, Sphererobot, and Sphererobot3Masses.

void place const Pos pos  )  [virtual]


sets the vehicle to position pos pos desired position of the robot

Parameters:
pos desired position of the robot
Examples:
main.cpp.

Definition at line 65 of file oderobot.cpp.

void setColor const Color col  )  [virtual]


sets color of the robot

Parameters:
col Color struct with desired Color

Definition at line 58 of file oderobot.cpp.

virtual void update  )  [pure virtual]


update the OSG notes here

Implemented in Arm2Segm, ForcedSphere, Formel1, HurlingSnake, MuscledArm, Nimm2, Nimm4, Schlange, ShortCircuit, Sphererobot, and Sphererobot3Masses.


Friends And Related Function Documentation

friend class OdeAgent [friend]


Definition at line 130 of file oderobot.h.


Member Data Documentation

OdeHandle odeHandle [protected]


Definition at line 201 of file oderobot.h.

OsgHandle osgHandle [protected]


Definition at line 202 of file oderobot.h.

dSpaceID parentspace [protected]


Reimplemented in Arm2Segm, and MuscledArm.

Definition at line 203 of file oderobot.h.
