MuscledArm Class Reference

#include <muscledarm.h>

Inheritance diagram for MuscledArm:

Inheritance graph
[legend]

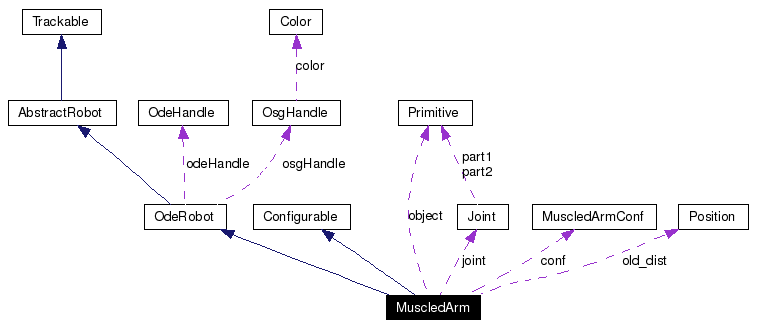

Collaboration diagram for MuscledArm:

Collaboration graph
[legend]
List of all members.

Detailed Description

Definition at line 136 of file muscledarm.h.

Public Member Functions

 MuscledArm (const OdeHandle &odeHandle, const OsgHandle &osgHandle, const MuscledArmConf &conf)
virtual ~MuscledArm ()
virtual void update ()
 draws the arm
virtual void place (const osg::Matrix &pose)
 sets the pose of the vehicle pose desired 4x4 pose matrix
virtual int getSensors (sensor *sensors, int sensornumber)
 returns actual sensorvalues
virtual void setMotors (const motor *motors, int motornumber)
 sets actual motorcommands
virtual int getSensorNumber ()
 returns number of sensors
virtual int getMotorNumber ()
 returns number of motors
virtual int getSegmentsPosition (vector< Position > &poslist)
 returns a vector with the positions of all segments of the robot
virtual bool collisionCallback (void *data, dGeomID o1, dGeomID o2)
 checks for internal collisions and treats them.
virtual void doInternalStuff (const GlobalData &globalData)
 this function is called in each timestep.
virtual paramkey getName () const
 returns the name of the object (with version number)
paramlist getParamList () const
 The list of all parameters with there value as allocated lists.
virtual paramval getParam (const paramkey &key) const
virtual bool setParam (const paramkey &key, paramval val)
virtual PrimitivegetMainObject () const

Static Public Member Functions

static MuscledArmConf getDefaultConf ()

Public Attributes

double force_ [6]

Protected Member Functions

virtual PrimitivegetMainPrimitive () const
 the main object of the robot, which is used for position and speed tracking
virtual void create (const osg::Matrix &pose)
 creates arm at desired position
virtual void destroy ()
 destroys vehicle and space
double dBodyGetPositionAll (dBodyID basis, int para)
double dGeomGetPositionAll (dGeomID basis, int para)
void BodyCreate (int n, dMass m, dReal x, dReal y, dReal z, dReal qx, dReal qy, dReal qz, dReal qangle)

Static Protected Member Functions

static void mycallback (void *data, dGeomID o1, dGeomID o2)

Protected Attributes

MuscledArmConf conf
Primitiveobject [NUMParts]
Jointjoint [NUMJoints]
Position old_dist [NUMParts]
string name
paramval factorMotors
paramval factorSensors
paramval damping
paramval print
int segmentsno
double gelenkabstand
double SOCKEL_LAENGE
double SOCKEL_BREITE
double SOCKEL_HOEHE
double SOCKEL_MASSE
int sensorno
int motorno
bool created
dSpaceID parentspace
int printed
double max_l
double max_r
double min_l
double min_r
double base_width
double base_length
double upperArm_width
double upperArm_length
double lowerArm_width
double lowerArm_length
double joint_offset
double mainMuscle_width
double mainMuscle_length
double smallMuscle_width
double smallMuscle_length

Static Protected Attributes

static const int armanzahl = 3


Constructor & Destructor Documentation

MuscledArm const OdeHandle odeHandle,
const OsgHandle osgHandle,
const MuscledArmConf conf


Definition at line 71 of file muscledarm.cpp.

virtual ~MuscledArm  )  [inline, virtual]


Definition at line 152 of file muscledarm.h.


Member Function Documentation

void BodyCreate int  n,
dMass  m,
dReal  x,
dReal  y,
dReal  z,
dReal  qx,
dReal  qy,
dReal  qz,
dReal  qangle
[protected]


bool collisionCallback void *  data,
dGeomID  o1,
dGeomID  o2
[virtual]


checks for internal collisions and treats them.

In case of a treatment return true (collision will be ignored by other objects and the default routine) else false (collision is passed to other objects and (if not treated) to the default routine).

Implements OdeRobot.

Definition at line 321 of file muscledarm.cpp.

void create const osg::Matrix pose  )  [protected, virtual]


creates arm at desired position

Parameters:
pose 4x4 pose matrix

Definition at line 365 of file muscledarm.cpp.

double dBodyGetPositionAll dBodyID  basis,
int  para
[protected]


void destroy  )  [protected, virtual]


destroys vehicle and space

Definition at line 694 of file muscledarm.cpp.

double dGeomGetPositionAll dGeomID  basis,
int  para
[protected]


void doInternalStuff const GlobalData globalData  )  [virtual]


this function is called in each timestep.

It should perform robot-internal checks, like space-internal collision detection, sensor resets/update etc.

Parameters:
globalData structure that contains global data from the simulation environment

Implements OdeRobot.

Definition at line 236 of file muscledarm.cpp.

static MuscledArmConf getDefaultConf  )  [inline, static]


Definition at line 143 of file muscledarm.h.

Primitive * getMainObject  )  const [virtual]


Definition at line 709 of file muscledarm.cpp.

virtual Primitive* getMainPrimitive  )  const [inline, protected, virtual]


the main object of the robot, which is used for position and speed tracking

Implements OdeRobot.

Definition at line 223 of file muscledarm.h.

virtual int getMotorNumber  )  [inline, virtual]


returns number of motors

Implements AbstractRobot.

Definition at line 186 of file muscledarm.h.

virtual paramkey getName  )  const [inline, virtual]


returns the name of the object (with version number)

Reimplemented from Configurable.

Definition at line 209 of file muscledarm.h.

Configurable::paramval getParam const paramkey key  )  const [virtual]


Definition at line 722 of file muscledarm.cpp.

Configurable::paramlist getParamList  )  const [virtual]


The list of all parameters with there value as allocated lists.

Reimplemented from Configurable.

Definition at line 713 of file muscledarm.cpp.

int getSegmentsPosition vector< Position > &  poslist  )  [virtual]


returns a vector with the positions of all segments of the robot

Parameters:
poslist vector of positions (of all robot segments)
Returns:
length of the list

Definition at line 211 of file muscledarm.cpp.

virtual int getSensorNumber  )  [inline, virtual]


returns number of sensors

Implements AbstractRobot.

Definition at line 180 of file muscledarm.h.

int getSensors sensor sensors,
int  sensornumber
[virtual]


returns actual sensorvalues

Parameters:
sensors sensors scaled to [-1,1]
sensornumber length of the sensor array
Returns:
number of actually written sensors

Implements AbstractRobot.

Definition at line 163 of file muscledarm.cpp.

void mycallback void *  data,
dGeomID  o1,
dGeomID  o2
[static, protected]


Definition at line 289 of file muscledarm.cpp.

void place const osg::Matrix pose  )  [virtual]


sets the pose of the vehicle pose desired 4x4 pose matrix

Parameters:
pose desired 4x4 pose matrix

Implements OdeRobot.

Definition at line 197 of file muscledarm.cpp.

void setMotors const motor motors,
int  motornumber
[virtual]


sets actual motorcommands

Parameters:
motors motors scaled to [-1,1]
motornumber length of the motor array

Implements AbstractRobot.

Definition at line 136 of file muscledarm.cpp.

bool setParam const paramkey key,
paramval  val
[virtual]


Definition at line 730 of file muscledarm.cpp.

void update  )  [virtual]


draws the arm

Implements OdeRobot.

Definition at line 223 of file muscledarm.cpp.


Member Data Documentation

const int armanzahl = 3 [static, protected]


Definition at line 244 of file muscledarm.h.

double base_length [protected]


Definition at line 286 of file muscledarm.h.

double base_width [protected]


Definition at line 285 of file muscledarm.h.

MuscledArmConf conf [protected]


Definition at line 242 of file muscledarm.h.

bool created [protected]


Definition at line 274 of file muscledarm.h.

paramval damping [protected]


Definition at line 255 of file muscledarm.h.

paramval factorMotors [protected]


Definition at line 253 of file muscledarm.h.

paramval factorSensors [protected]


Definition at line 254 of file muscledarm.h.

double force_[6]


Definition at line 139 of file muscledarm.h.

double gelenkabstand [protected]


Definition at line 265 of file muscledarm.h.

Joint* joint[NUMJoints] [protected]


Definition at line 248 of file muscledarm.h.

double joint_offset [protected]


Definition at line 291 of file muscledarm.h.

double lowerArm_length [protected]


Definition at line 290 of file muscledarm.h.

double lowerArm_width [protected]


Definition at line 289 of file muscledarm.h.

double mainMuscle_length [protected]


Definition at line 293 of file muscledarm.h.

double mainMuscle_width [protected]


Definition at line 292 of file muscledarm.h.

double max_l [protected]


Definition at line 282 of file muscledarm.h.

double max_r [protected]


Definition at line 283 of file muscledarm.h.

double min_l [protected]


Definition at line 283 of file muscledarm.h.

double min_r [protected]


Definition at line 283 of file muscledarm.h.

int motorno [protected]


Definition at line 272 of file muscledarm.h.

string name [protected]


Reimplemented from AbstractRobot.

Definition at line 252 of file muscledarm.h.

Primitive* object[NUMParts] [protected]


Definition at line 247 of file muscledarm.h.

Position old_dist[NUMParts] [protected]


Definition at line 250 of file muscledarm.h.

dSpaceID parentspace [protected]


Reimplemented from OdeRobot.

Definition at line 278 of file muscledarm.h.

paramval print [protected]


Definition at line 256 of file muscledarm.h.

int printed [protected]


Definition at line 280 of file muscledarm.h.

int segmentsno [protected]


Definition at line 261 of file muscledarm.h.

int sensorno [protected]


Definition at line 271 of file muscledarm.h.

double smallMuscle_length [protected]


Definition at line 295 of file muscledarm.h.

double smallMuscle_width [protected]


Definition at line 294 of file muscledarm.h.

double SOCKEL_BREITE [protected]


Definition at line 267 of file muscledarm.h.

double SOCKEL_HOEHE [protected]


Definition at line 268 of file muscledarm.h.

double SOCKEL_LAENGE [protected]


Definition at line 266 of file muscledarm.h.

double SOCKEL_MASSE [protected]


Definition at line 269 of file muscledarm.h.

double upperArm_length [protected]


Definition at line 288 of file muscledarm.h.

double upperArm_width [protected]


Definition at line 287 of file muscledarm.h.
