Inspectable Class Reference

#include <inspectable.h>

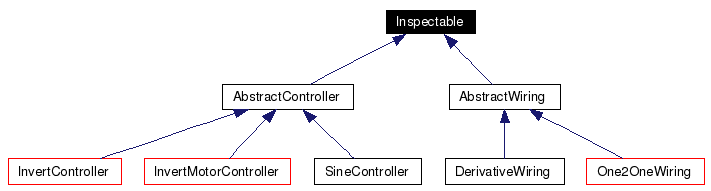

Inheritance diagram for Inspectable:

[legend]List of all members.

---

Detailed Description

Interface for inspectable objects.

That means that one can read out some internal parameters indentified by string keys

Definition at line 53 of file inspectable.h.

Public Types
typedef string	iparamkey
typedef double	iparamval
typedef Inspectable::ILayer	ILayer
typedef Inspectable::IConnection	IConnection
Public Member Functions
virtual	~Inspectable ()
virtual list< iparamkey >	getInternalParamNames () const =0
	The list of the names of all internal parameters given by getInternalParams().
virtual list< iparamval >	getInternalParams () const =0
virtual list< ILayer >	getStructuralLayers () const
	Specifies which parameter vector forms a structural layer (in terms of a neural network) The ordering is important.
virtual list< IConnection >	getStructuralConnections () const
	Specifies which parameter matrix forms a connection between layers (in terms of a neural network) The orderning is not important.
Classes
struct	IConnection
struct	ILayer
struct	matchName
	nice predicate function for finding a Layer with its vectorname More...

---

Member Typedef Documentation

typedef struct Inspectable::IConnection IConnection

typedef struct Inspectable::ILayer ILayer

typedef string iparamkey

Definition at line 56 of file inspectable.h.

typedef double iparamval

Definition at line 57 of file inspectable.h.

---

Constructor & Destructor Documentation

virtual ~Inspectable (   )  [inline, virtual]

Definition at line 84 of file inspectable.h.

---

Member Function Documentation

virtual list<iparamkey> getInternalParamNames (   )  const [pure virtual]

The list of the names of all internal parameters given by getInternalParams(). The naming convention is "v[i]" for vectors and "A[i][j]" for matrices, where i, j start at 0. Returns: : list of keys Implemented in InvertMotorSpace, InvertNChannelController, SineController, AbstractWiring, and One2OneWiring.

virtual list<iparamval> getInternalParams (   )  const [pure virtual]

Returns: : list of values Implemented in InvertMotorSpace, InvertNChannelController, SineController, AbstractWiring, and One2OneWiring.

virtual list<IConnection> getStructuralConnections (   )  const [inline, virtual]

Specifies which parameter matrix forms a connection between layers (in terms of a neural network) The orderning is not important. Returns: : list of layer names with dimension Reimplemented in InvertMotorSpace, and InvertNChannelController. Definition at line 105 of file inspectable.h.

virtual list<ILayer> getStructuralLayers (   )  const [inline, virtual]

Specifies which parameter vector forms a structural layer (in terms of a neural network) The ordering is important. The first entry is the input layer and so on. Returns: : list of layer names with dimension Reimplemented in InvertMotorSpace, and InvertNChannelController. Definition at line 100 of file inspectable.h.

---
