AbstractWiring Class Reference

#include <abstractwiring.h>

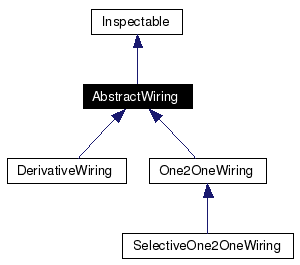

Inheritance diagram for AbstractWiring:

[legend]Collaboration diagram for AbstractWiring:

[legend]List of all members.

---

Detailed Description

Abstract wiring-object between controller and robot.

Implements wiring of robot sensors to inputs of the controller and controller outputs to robot motors.

Definition at line 63 of file abstractwiring.h.

Public Member Functions
	AbstractWiring (NoiseGenerator *noise)
	constructor
virtual	~AbstractWiring ()
	destructor
virtual bool	init (int robotsensornumber, int robotmotornumber)=0
	Initializes the number of sensors and motors from robot (to be precise the internal parameters rsensornumber and rmotornumber!), calculates the number of sensors and motors on controller side.
virtual bool	wireSensors (const sensor *rsensors, int rsensornumber, sensor *csensors, int csensornumber, double noise)=0
	Realizes wiring from robot sensors to controller sensors.
virtual bool	wireMotors (motor *rmotors, int rmotornumber, const motor *cmotors, int cmotornumber)=0
	Realizes wiring from controller motor outputs to robot motors.
virtual int	getRobotSensornumber ()
	Returns the number of sensors on robot side.
virtual int	getRobotMotornumber ()
	Returns the number of motors on robot side.
virtual int	getControllerSensornumber ()
	Returns the number of sensors on controller side.
virtual int	getControllerMotornumber ()
	Returns the number of motors on controller side.
virtual list< iparamkey >	getInternalParamNames () const
	Returns the list of the names of all internal parameters.
virtual list< iparamval >	getInternalParams () const
	Returns a list of the values of all internal parameters (in the order given by getInternalParamNames()).
Protected Attributes
int	rsensornumber
	number of sensors at robot side
int	rmotornumber
	number of motors at robot side
int	csensornumber
	number of sensors at controller side
int	cmotornumber
	number of motors at controller side
NoiseGenerator *	noiseGenerator

---

Constructor & Destructor Documentation

AbstractWiring (  NoiseGenerator *  noise  )  [inline]

constructor Parameters: noise  NoiseGenerator that is used for adding noise to sensor values Definition at line 68 of file abstractwiring.h.

virtual ~AbstractWiring (   )  [inline, virtual]

destructor Definition at line 78 of file abstractwiring.h.

---

Member Function Documentation

virtual int getControllerMotornumber (   )  [inline, virtual]

Returns the number of motors on controller side. Definition at line 132 of file abstractwiring.h.

virtual int getControllerSensornumber (   )  [inline, virtual]

Returns the number of sensors on controller side. Definition at line 128 of file abstractwiring.h.

virtual list<iparamkey> getInternalParamNames (   )  const [inline, virtual]

Returns the list of the names of all internal parameters. Implements Inspectable. Reimplemented in One2OneWiring. Definition at line 136 of file abstractwiring.h.

virtual list<iparamval> getInternalParams (   )  const [inline, virtual]

Returns a list of the values of all internal parameters (in the order given by getInternalParamNames()). Implements Inspectable. Reimplemented in One2OneWiring. Definition at line 141 of file abstractwiring.h.

virtual int getRobotMotornumber (   )  [inline, virtual]

Returns the number of motors on robot side. Definition at line 124 of file abstractwiring.h.

virtual int getRobotSensornumber (   )  [inline, virtual]

Returns the number of sensors on robot side. Definition at line 120 of file abstractwiring.h.

virtual bool init (  int  robotsensornumber, int  robotmotornumber )  [pure virtual]

Initializes the number of sensors and motors from robot (to be precise the internal parameters rsensornumber and rmotornumber!), calculates the number of sensors and motors on controller side. Must be overloaded to calculate and provide the appropriate numbers controllersensornumber (csensornumber), controllermotornumber (cmotornumber), robotsensornumber (rsensornumber) and robotmotornumber (rmotornumber), Returns: returns false if error, else true Implemented in DerivativeWiring, One2OneWiring, and SelectiveOne2OneWiring.

virtual bool wireMotors (  motor *  rmotors, int  rmotornumber, const motor *  cmotors, int  cmotornumber )  [pure virtual]

Realizes wiring from controller motor outputs to robot motors. Must be overloaded in order to implement the appropriate mapping. Parameters: rmotors  pointer to array of motorvalues for robot rmotornumber  number of robot motors cmotors  pointer to array of motorvalues from controller cmotornumber  number of motorvalues from controller Returns: returns false if error, else true Implemented in DerivativeWiring, and One2OneWiring.

virtual bool wireSensors (  const sensor *  rsensors, int  rsensornumber, sensor *  csensors, int  csensornumber, double  noise )  [pure virtual]

Realizes wiring from robot sensors to controller sensors. Must be overloaded in order to implement the appropriate mapping. Parameters: rsensors  pointer to array of sensorvalues from robot rsensornumber  number of sensors from robot csensors  pointer to array of sensorvalues for controller csensornumber  number of sensors to controller noise  size of the noise added to the sensors Returns: returns false if error, else true Implemented in DerivativeWiring, One2OneWiring, and SelectiveOne2OneWiring.

---

Member Data Documentation

int cmotornumber [protected]

number of motors at controller side Definition at line 155 of file abstractwiring.h.

int csensornumber [protected]

number of sensors at controller side Definition at line 152 of file abstractwiring.h.

NoiseGenerator* noiseGenerator [protected]

Definition at line 157 of file abstractwiring.h.

int rmotornumber [protected]

number of motors at robot side Definition at line 149 of file abstractwiring.h.

int rsensornumber [protected]

number of sensors at robot side Definition at line 141 of file abstractwiring.h.

---
