#include <primitive.h>
Inherited by Box, Capsule, Cylinder, DummyPrimitive, HeightField, Mesh, Plane, Ray, Sphere, and Transform.

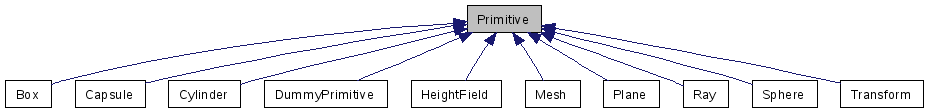

Inheritance diagram for Primitive:
Public Types | |
| Body = 1 | |
| Geom = 2 | |
| Draw = 4 | |
| Child = 8 | |
| Dyn = 1 | |
| Stat = 2 | |
| enum | Modes { Body = 1, Geom = 2, Draw = 4, Child = 8 } |
| Body means that it is a dynamic object with a body. More... | |
| enum | Category { Dyn = 1, Stat = 2 } |
Public Member Functions | |
| Primitive () | |
| virtual | ~Primitive () |
| virtual void | init (const OdeHandle &odeHandle, double mass, const OsgHandle &osgHandle, char mode=Body|Geom|Draw)=0 |
| registers primitive in ODE and OSG. | |
| virtual void | update ()=0 |
| Updates the OSG nodes with ODE coordinates. | |
| virtual OSGPrimitive * | getOSGPrimitive ()=0 |
| returns the assoziated osg primitive if there or 0 | |
| virtual void | setColor (const Color &color) |
| sets the color for the underlaying osgprimitive | |
| virtual void | setTexture (const std::string &filename) |
| assigns a texture to the primitive | |
| virtual void | setTexture (const std::string &filename, bool repeatOnX, bool repeatOnY) |
| assigns a texture to the primitive, you can choose if the texture should be repeated | |
| void | setPosition (const osg::Vec3 &pos) |
| set the position of the primitive (orientation is preserved) | |
| void | setPose (const osg::Matrix &pose) |
| set the pose of the primitive | |
| osg::Vec3 | getPosition () const |
| returns the position | |
| osg::Matrix | getPose () const |
| returns the pose | |
| virtual void | setMass (double mass)=0 |
| sets the mass of the body (uniform) | |
| void | setMass (double mass, double cgx, double cgy, double cgz, double I11, double I22, double I33, double I12, double I13, double I23) |
| sets full mass specification. | |
| dGeomID | getGeom () const |
| returns ODE geomID if there | |
| dBodyID | getBody () const |
| returns ODE bodyID if there | |
| bool | limitLinearVel (double maxVel) |
| checks whether the object has higher velocity than maxVel and limits it in case | |
| osg::Vec3 | toLocal (const osg::Vec3 &pos) const |
| return the given point transformed to local coordinates of the primitive | |
| osg::Vec4 | toLocal (const osg::Vec4 &axis) const |
| return the given vector or axis transformed to local coordinates of the primitive (translation depends on 4th coordinate) | |
Public Attributes | |
| Substance | substance |
Protected Member Functions | |
| virtual void | attachGeomAndSetColliderFlags () |
| attaches geom to body (if any) and sets the category bits and collision bitfields. | |
Protected Attributes | |
| dGeomID | geom |
| dBodyID | body |
| char | mode |
This is intended to bring OSG and ODE together and hide most implementation details.
| enum Category |
| enum Modes |
| Primitive | ( | ) |
| ~Primitive | ( | ) | [virtual] |
| void attachGeomAndSetColliderFlags | ( | ) | [protected, virtual] |
attaches geom to body (if any) and sets the category bits and collision bitfields.
assumes: mode & Geom != 0
| dBodyID getBody | ( | ) | const |
returns ODE bodyID if there
| dGeomID getGeom | ( | ) | const |
returns ODE geomID if there
| virtual OSGPrimitive* getOSGPrimitive | ( | ) | [pure virtual] |
returns the assoziated osg primitive if there or 0
Implemented in HeightField, Plane, Box, Sphere, Capsule, Cylinder, Ray, Mesh, Transform, and DummyPrimitive.
| osg::Matrix getPose | ( | ) | const |
returns the pose
| osg::Vec3 getPosition | ( | ) | const |
returns the position
| virtual void init | ( | const OdeHandle & | odeHandle, | |
| double | mass, | |||
| const OsgHandle & | osgHandle, | |||
| char | mode = Body|Geom|Draw | |||
| ) | [pure virtual] |
registers primitive in ODE and OSG.
| osgHandle | scruct with ODE variables inside (to specify space, world...) | |
| mass | Mass of the object in ODE (if withBody = true) | |
| osgHandle | scruct with OSG variables inside (scene node, color ...) | |
| mode | is a conjuction of Modes. |
Implemented in HeightField, Plane, Box, Sphere, Capsule, Cylinder, Ray, Mesh, Transform, and DummyPrimitive.
| bool limitLinearVel | ( | double | maxVel | ) |
checks whether the object has higher velocity than maxVel and limits it in case
| void setColor | ( | const Color & | color | ) | [virtual] |
sets the color for the underlaying osgprimitive
| void setMass | ( | double | mass, | |
| double | cgx, | |||
| double | cgy, | |||
| double | cgz, | |||
| double | I11, | |||
| double | I22, | |||
| double | I33, | |||
| double | I12, | |||
| double | I13, | |||
| double | I23 | |||
| ) |
sets full mass specification.
| cg | center of gravity vector | |
| I | 3x3 interia tensor |
| virtual void setMass | ( | double | mass | ) | [pure virtual] |
sets the mass of the body (uniform)
Implemented in HeightField, Plane, Box, Sphere, Capsule, Cylinder, Ray, Mesh, Transform, and DummyPrimitive.
| void setPose | ( | const osg::Matrix & | pose | ) |
| void setPosition | ( | const osg::Vec3 & | pos | ) |
set the position of the primitive (orientation is preserved)
| void setTexture | ( | const std::string & | filename, | |
| bool | repeatOnX, | |||
| bool | repeatOnY | |||
| ) | [virtual] |
assigns a texture to the primitive, you can choose if the texture should be repeated
| void setTexture | ( | const std::string & | filename | ) | [virtual] |
assigns a texture to the primitive
return the given vector or axis transformed to local coordinates of the primitive (translation depends on 4th coordinate)
return the given point transformed to local coordinates of the primitive
| virtual void update | ( | ) | [pure virtual] |
Updates the OSG nodes with ODE coordinates.
This function must be overloaded (usually calls setMatrix of OsgPrimitives)
Implemented in HeightField, Plane, Box, Sphere, Capsule, Cylinder, Ray, Mesh, Transform, and DummyPrimitive.
dBodyID body [protected] |
dGeomID geom [protected] |
char mode [protected] |
