TruckMesh Class Reference

Robot that looks like a Nimm 2 Bonbon :-) 4 wheels and a truck mesh like body. More...

#include <truckmesh.h>

Inherits lpzrobots::OdeRobot.

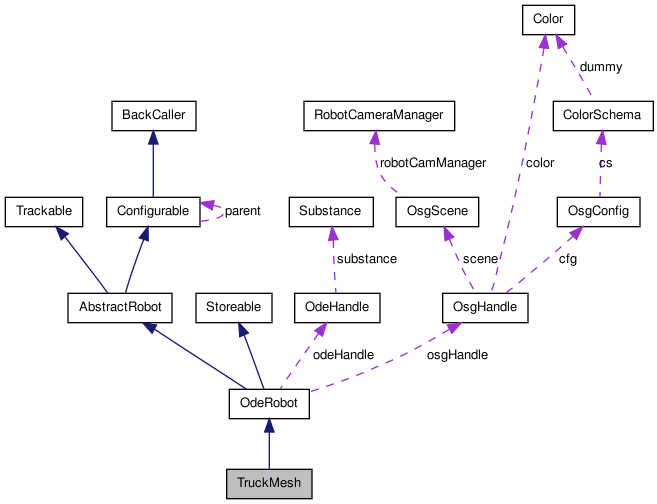

Collaboration diagram for TruckMesh:

[legend]

List of all members.

Public Member Functions
	TruckMesh (const OdeHandle &odeHandle, const OsgHandle &osgHandle, const std::string &name, double size=1, double force=3, double speed=15, double mass=1)
	constructor of TruckMesh robot
virtual	~TruckMesh ()
virtual void	update ()
	updates the OSG nodes of the vehicle
virtual void	place (const osg::Matrix &pose)
	sets the pose of the vehicle
virtual int	getSensors (sensor *sensors, int sensornumber)
	returns actual sensorvalues
virtual void	setMotors (const motor *motors, int motornumber)
	sets actual motorcommands
virtual int	getSensorNumber ()
	returns number of sensors
virtual int	getMotorNumber ()
	returns number of motors
virtual void	doInternalStuff (GlobalData &globalData)
	this function is called in each timestep.
Protected Member Functions
virtual void	create (const osg::Matrix &pose)
	creates vehicle at desired pose
virtual void	destroy ()
	destroys vehicle and space
Static Protected Member Functions
static void	mycallback (void *data, dGeomID o1, dGeomID o2)
	additional things for collision handling can be done here
Protected Attributes
double	length
double	width
double	middlewidth
double	middlelength
double	height
double	radius
double	wheelthickness
double	cmass
double	wmass
int	sensorno
int	motorno
int	segmentsno
double	speed
bool	drawBoundings
double	max_force
bool	created

---

Detailed Description

Robot that looks like a Nimm 2 Bonbon :-) 4 wheels and a truck mesh like body.

---

Constructor & Destructor Documentation

TruckMesh	(	const OdeHandle &	odeHandle,
		const OsgHandle &	osgHandle,
		const std::string &	name,
		double	size = 1,
		double	force = 3,
		double	speed = 15,
		double	mass = 1
	)

constructor of TruckMesh robot

Parameters:

	odeHandle	data structure for accessing ODE
	osgHandle	ata structure for accessing OSG
	size	scaling of robot
	force	maximal used force to realize motorcommand
	speed	factor for changing speed of robot

virtual ~TruckMesh

(

)

[inline, virtual]

---

Member Function Documentation

void create

(

const osg::Matrix &

pose

)

[protected, virtual]

creates vehicle at desired pose

creates vehicle at desired position

Parameters:

	pose	4x4 pose matrix
	pos	struct Position with desired position

void destroy

(

)

[protected, virtual]

destroys vehicle and space

void doInternalStuff

(

GlobalData &

global

)

[virtual]

this function is called in each timestep.

It should perform robot-internal checks, like space-internal collision detection, sensor resets/update etc.

Parameters:

globalData

structure that contains global data from the simulation environment

It should perform robot-internal checks, like space-internal collision detection, sensor resets/update etc.

Parameters:

global

structure that contains global data from the simulation environment

Reimplemented from OdeRobot.

virtual int getMotorNumber

(

)

[inline, virtual]

returns number of motors

Implements AbstractRobot.

virtual int getSensorNumber

(

)

[inline, virtual]

returns number of sensors

Implements AbstractRobot.

int getSensors	(	sensor *	sensors,
		int	sensornumber
	)			[virtual]

returns actual sensorvalues

Parameters:

	sensors	sensors scaled to [-1,1]
	sensornumber	length of the sensor array

Returns:

number of actually written sensors

Parameters:

	sensors	sensors scaled to [-1,1] (more or less)
	sensornumber	length of the sensor array

Returns:

number of actually written sensors

Implements AbstractRobot.

void mycallback	(	void *	data,
		dGeomID	o1,
		dGeomID	o2
	)			[static, protected]

additional things for collision handling can be done here

things for collision handling inside the space of the robot can be done here

void place

(

const osg::Matrix &

pose

)

[virtual]

sets the pose of the vehicle

Parameters:

pose

desired pose matrix

Implements OdeRobot.

void setMotors	(	const motor *	motors,
		int	motornumber
	)			[virtual]

sets actual motorcommands

Parameters:

	motors	motors scaled to [-1,1]
	motornumber	length of the motor array

Implements AbstractRobot.

void update

(

)

[virtual]

updates the OSG nodes of the vehicle

updates the osg notes

Implements OdeRobot.

---

Member Data Documentation

double cmass [protected]

bool created [protected]

bool drawBoundings [protected]

double height [protected]

double length [protected]

double max_force [protected]

double middlelength [protected]

double middlewidth [protected]

int motorno [protected]

double radius [protected]

int segmentsno [protected]

int sensorno [protected]

double speed [protected]

double wheelthickness [protected]

double width [protected]

double wmass [protected]

---

The documentation for this class was generated from the following files:

• truckmesh.h
• truckmesh.cpp
